Exosome Isolation

The Exo-spin™ kits generate superior yields and higher quality whole exosomes than traditional methods, with no need for ultracentrifugation or organic buffers. Exo-spin purifies particles in the range 30 – 400nm, the same size range achieved with ultracentrifugation. Exo-spin technology is superior to techniques which rely solely on precipitation where co-purification of large amounts of non-exosomal proteins and other material can occur as well as carry over of the precipitant.

Exo-spin kits and columns are designed to isolate pure, functional exosomes from a variety of biological fluids including cell culture media, urine and saliva, blood plasma and sera. Exo-spin purified exosomes are suitable for a variety of downstream applications including RNA analysis, protein analysis, mass spec and functional use.

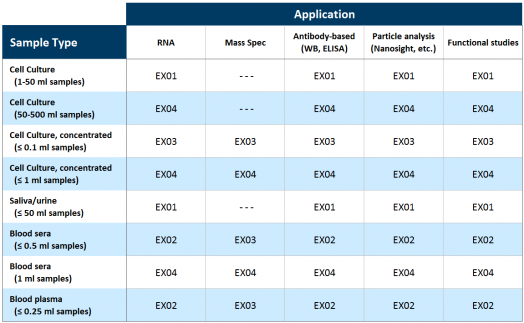

Exo-spin is offered in several configurations and options for use. Kits for large volume, low exosome-containing samples employ a precipitation step followed by size exclusion column chromatography. For samples with high exosome concentrations like sera and plasma or for mass spec applications, the precipitation step can be omitted. Refer to the following product selection guide to identify the correct product for your applications and sample type.

Key Features

Excellent yields and high levels of purity

No ultracentrifugation

Simple and reliable

Exosomes with low levels of protein and rRNA contamination

The protocol provides consistent results every time

Isolate intact whole exosomes for functional studies

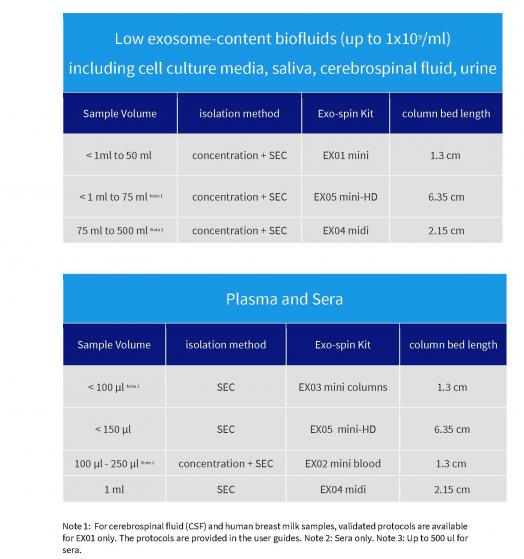

Low exosome-content biofluids
(up to 1x109/ml)

including cell culture media, saliva, cerebrospinal fluid, urine

Sample Volume

isolation method

Exo-spin Kit

column bed length

< 1ml to 50 ml

concentration + SEC

EX01 mini

1.3 cm

 < 1 ml to 75 ml Note 1

concentration + SEC

EX05 mini-HD

6.35 cm

75 ml to 500 ml Note 1 concentration + SEC EX04 midi 2.15 cm



Plasma and Sera

Sample Volume

isolation method

Exo-spin Kit

column bed length

< 100 µl Note 2

SEC

EX03 mini columns

1.3 cm

< 150 µl

SEC

EX05  mini-HD 6.35 cm
100 µl - 250 µl Note 3 concentration + SEC EX02 mini blood 1.3 cm
1 ml SEC EX04 midi 2.15 cm


Publications

Lane et al perform an independent analysis of various exosome purification technologies, including Exo-spin™, using a model liposome system.   Analysis of exosome purification methods using a model liposome system and tunable-resistive pulse sensing. Rebecca E. Lane, Darren Korbie, Will Anderson, Ramanathan Vaidyanathan & Matt Trau. Scientific Reports 5, Article number: 7639 doi:10.1038/srep07639

Welton et al characterized plasma and cell culture exosomes purified on Exo-spin™ midi-columns.  Ready-made chromatography columns for extracellular vesicle isolation from plasma. Joanne Louise Welton, Jason Paul Webber, Laur-Alexandru Botos, Michael Jones and Aled Clayton. Journal of Extracellular Vesicles 2015, 4: 27269.
